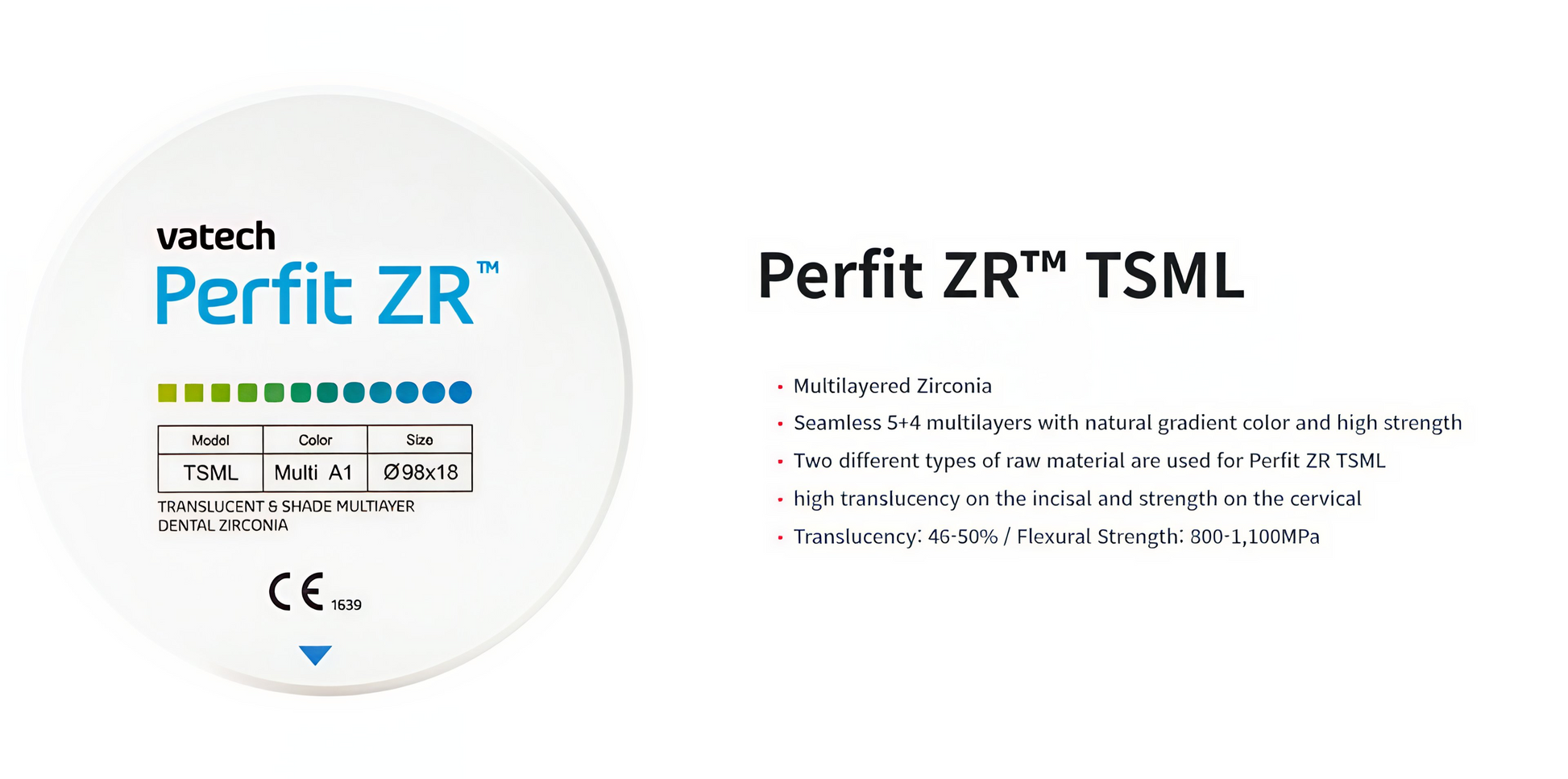

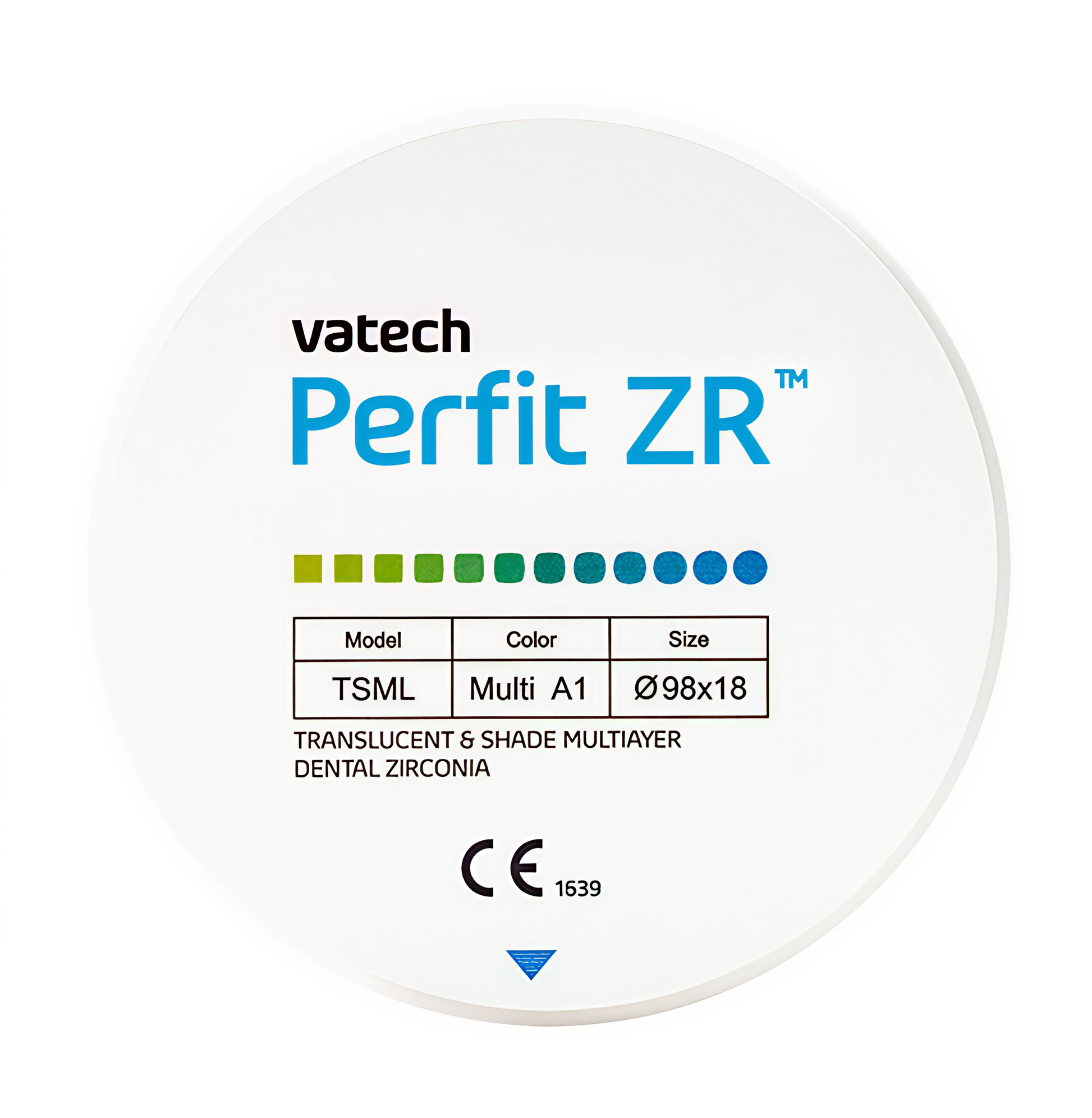

Perfit ZR™ TSML is an advanced 9-layer (5+4) multilayer zirconia disc designed to deliver superior translucency and natural gradient esthetics while maintaining high flexural strength. It combines incisal translucency with cervical strength, making it ideal for both anterior and posterior monolithic restorations.

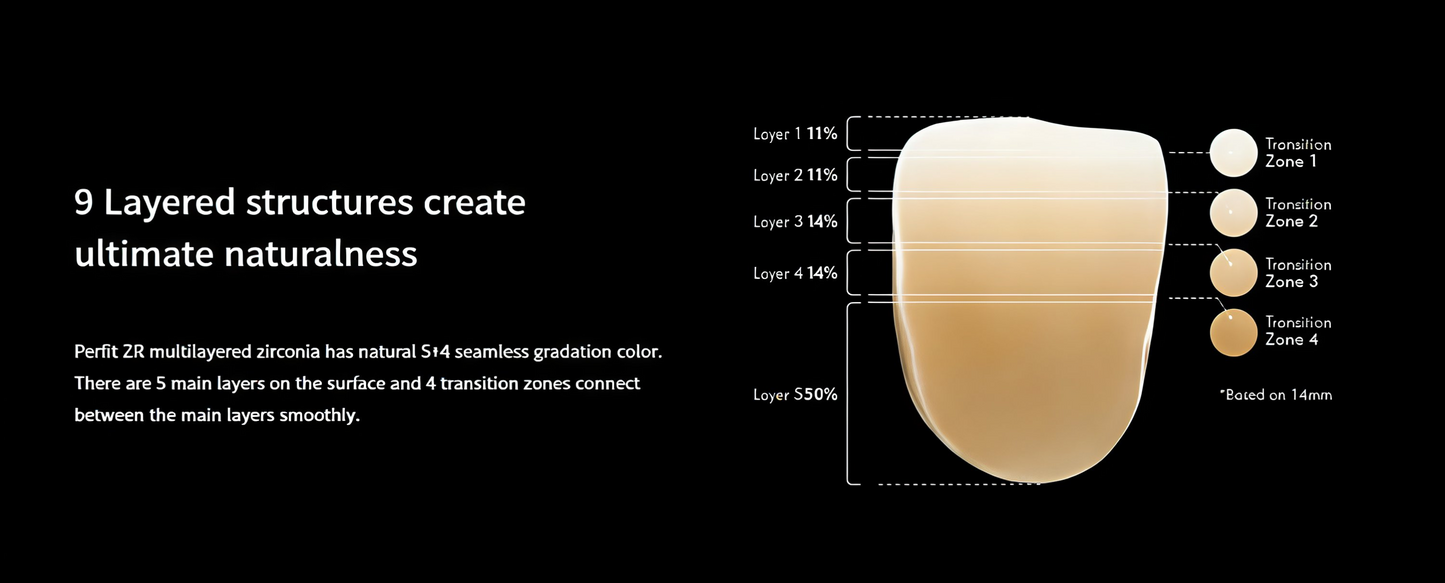

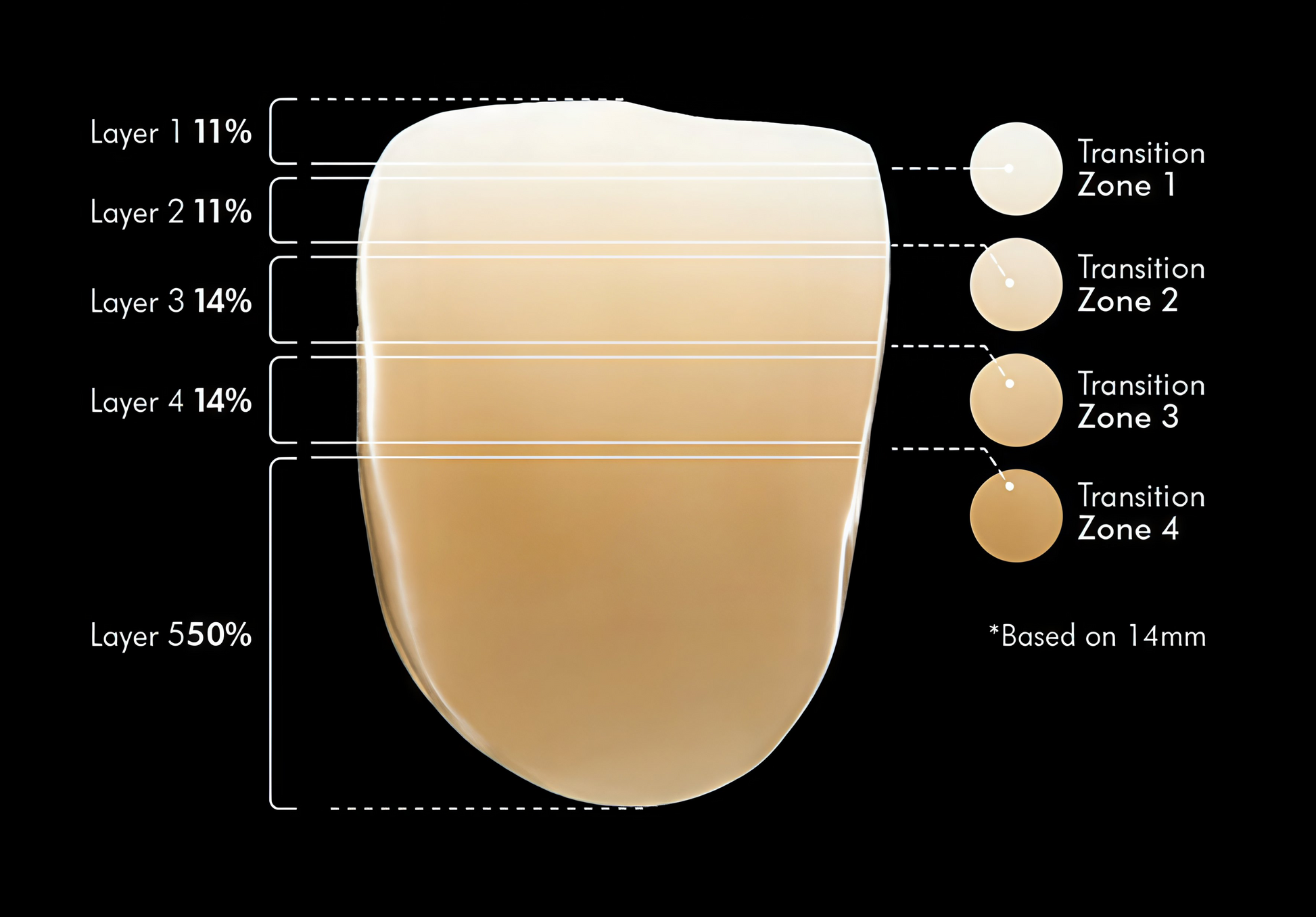

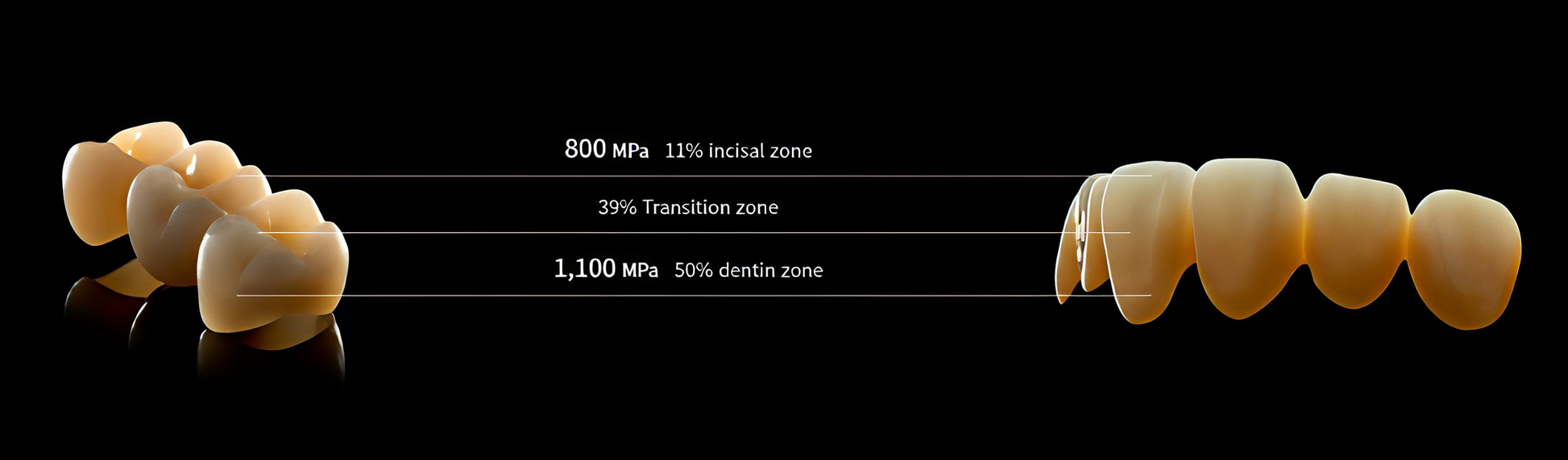

🎨 9-Layer Seamless Multilayer Structure
5 main layers with 4 smooth transition zones (5+4 structure)
Natural enamel-to-dentin gradient without visible boundary lines

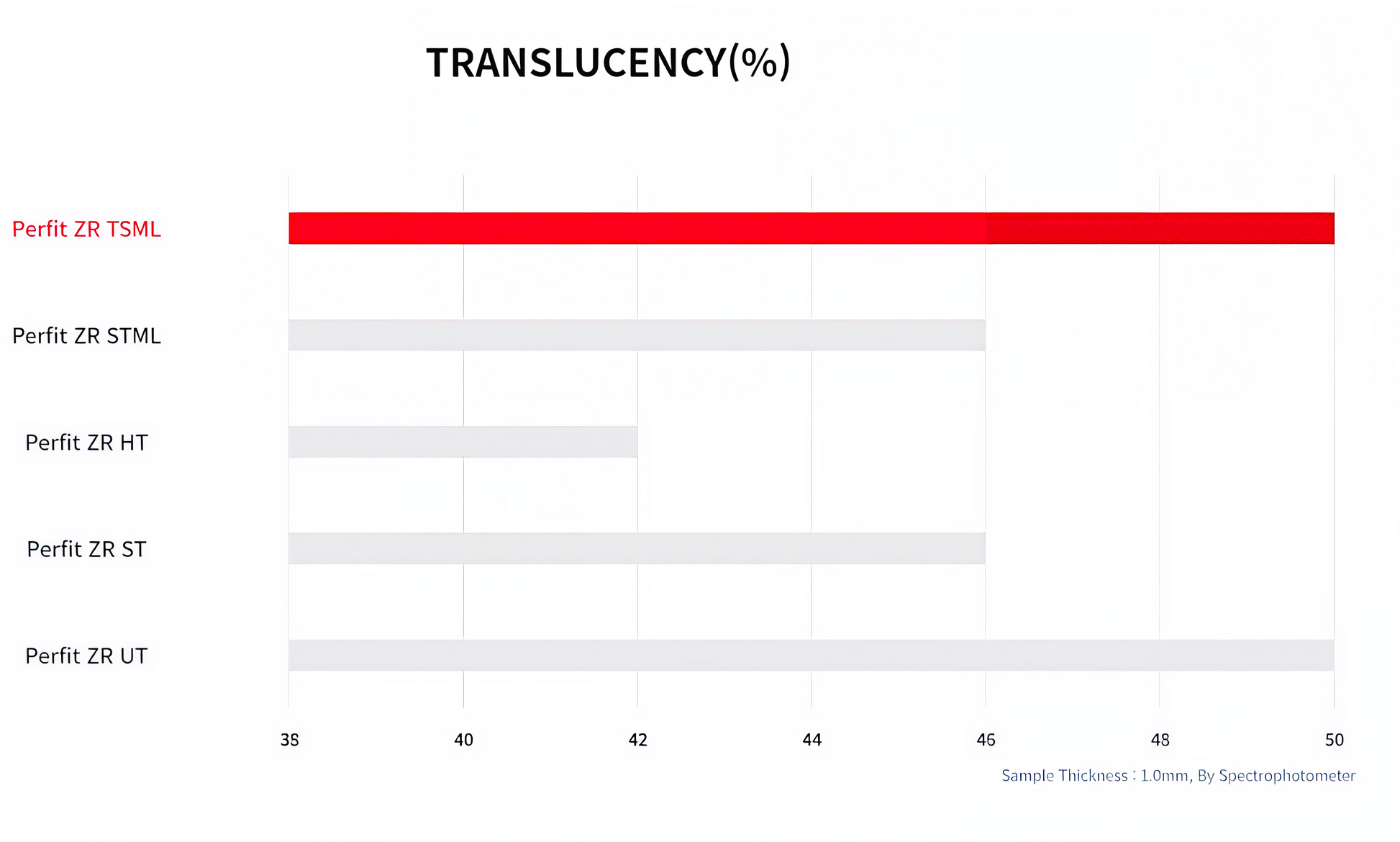

High translucency in the incisal zone (approx. 46–50%)
High strength in the dentin zone (up to 1,100 MPa)
Layer distribution based on 14 mm disc height for predictable esthetics

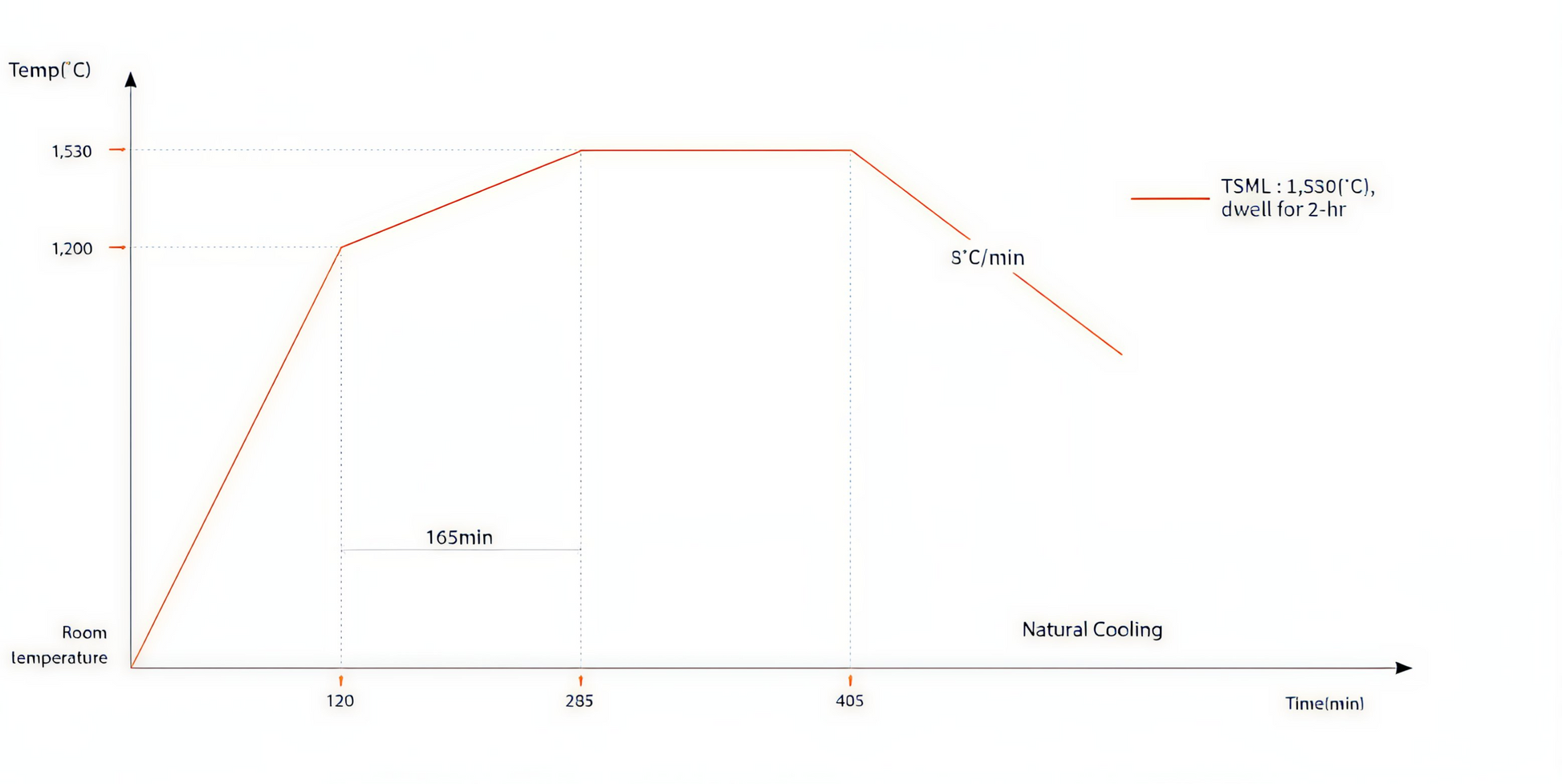

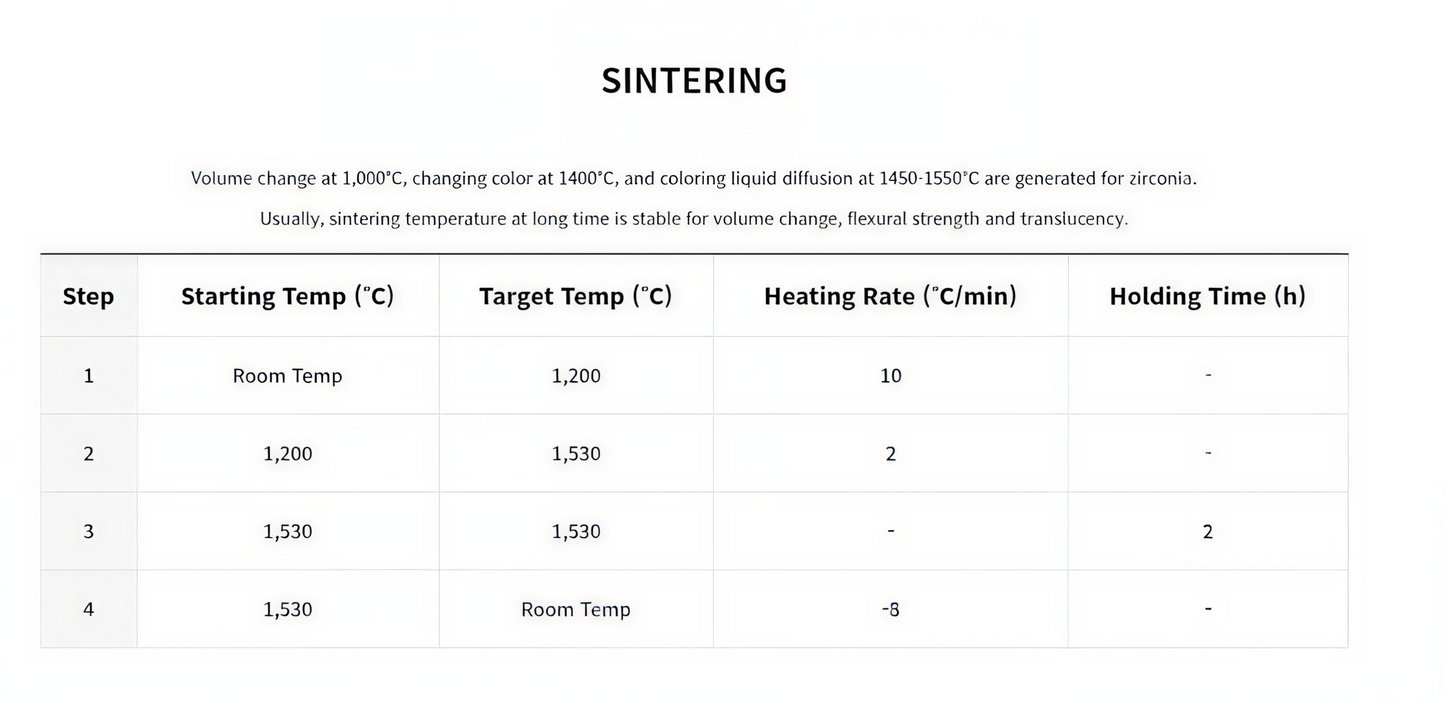

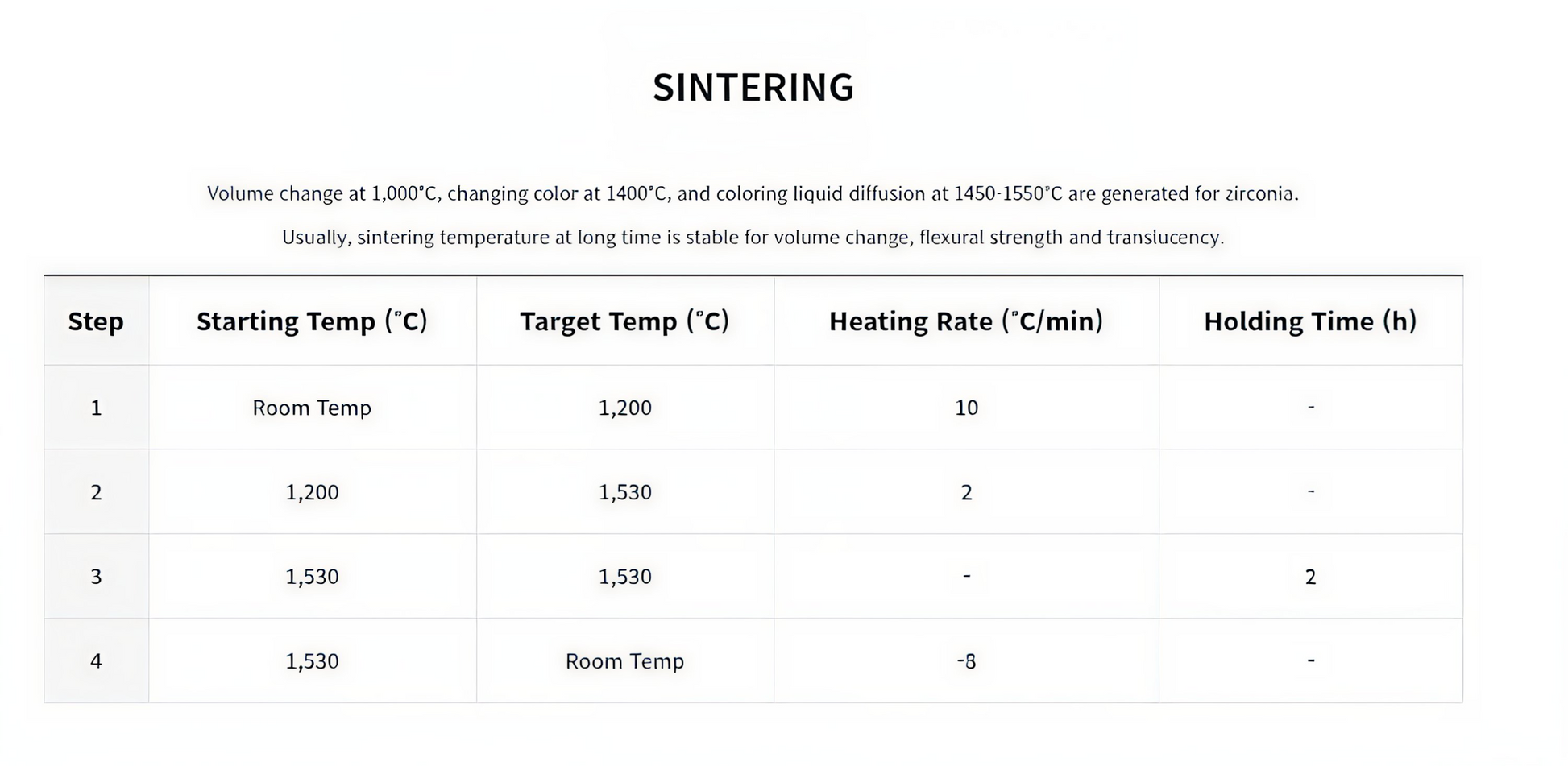

🔥 Recommended Sintering Schedule (TSML: 1,530°C, dwell for 2 hours)
For optimal translucency, flexural strength, and dimensional stability, follow the recommended sintering cycle below:
Step
Starting Temp (°C)
Target Temp (°C)
Heating / Cooling Rate (°C/min)
Holding Time (h)
1
Room Temp
1,200
+10
-
2
1,200
1,530
+2
-
3
1,530
1,530
-
2
4
1,530
Room Temp
-8 (natural cooling)
-
Note: Volume change occurs around 1,000°C, color change around 1,400°C, and coloring liquid diffusion between 1,450–1,550°C.

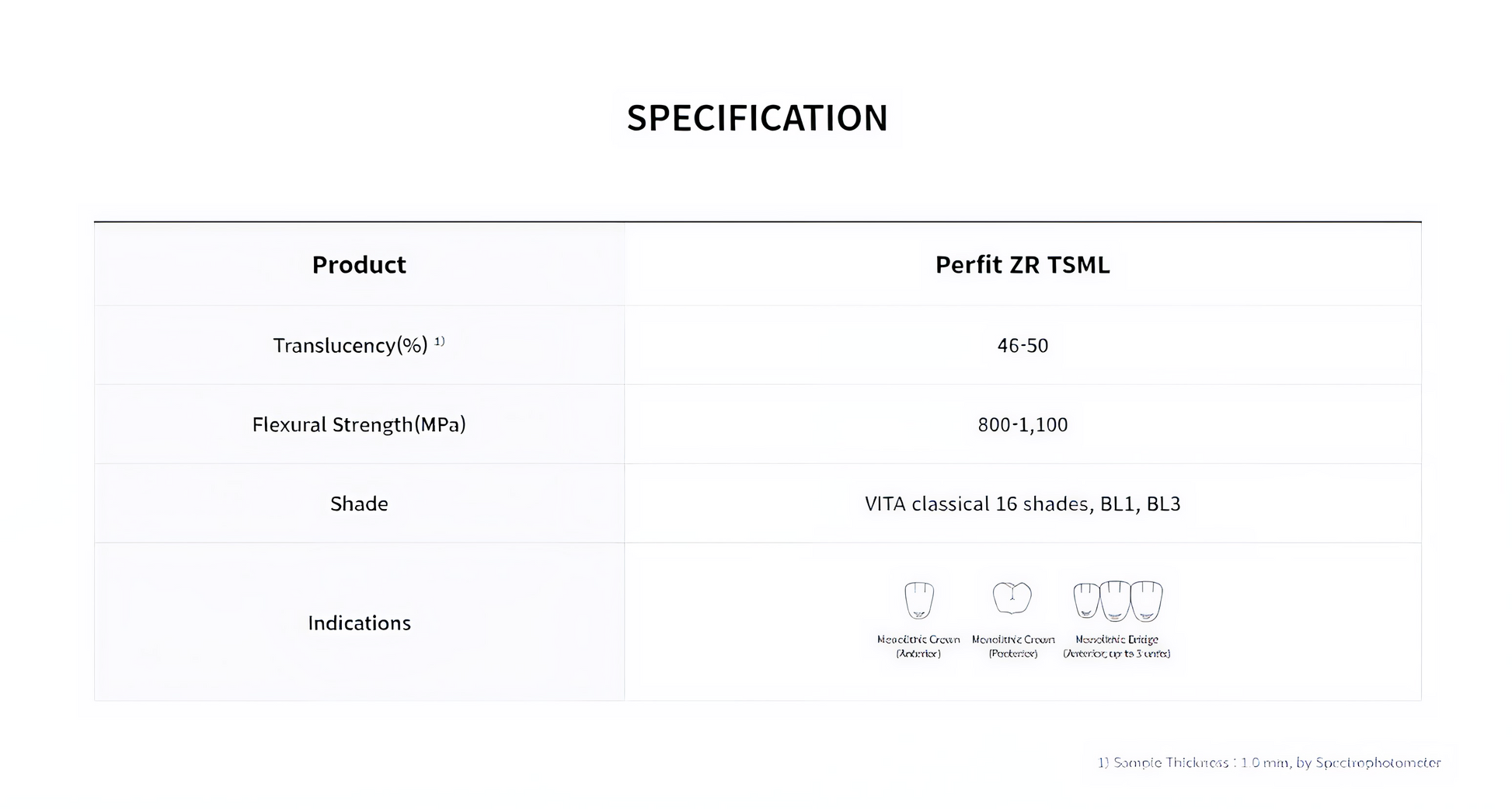

📊 Product Specification
Product
Perfit ZR™ TSML
Translucency (%)
46–50% (at 1.0 mm thickness)
Flexural Strength (MPa)
800–1,100 MPa
Shade
VITA Classical 16 Shades + BL1, BL3
Indications
Monolithic Crown (Anterior)
Monolithic Crown (Posterior)
Monolithic Bridge (Anterior, up to 3 units)
Disc Size
Ø98 mm (standard open CAD/CAM system compatible)
Sample thickness for translucency measurement: 1.0 mm (by spectrophotometer).
✅ Key Advantages
True 9-layer seamless gradient for ultimate natural esthetics
High translucency at incisal area with reinforced cervical strength
Stable sintering behavior with minimal distortion
Suitable for anterior bridges (up to 3 units)
Compatible with most open CAD/CAM milling systems
CE certified – reliable quality for daily lab production
